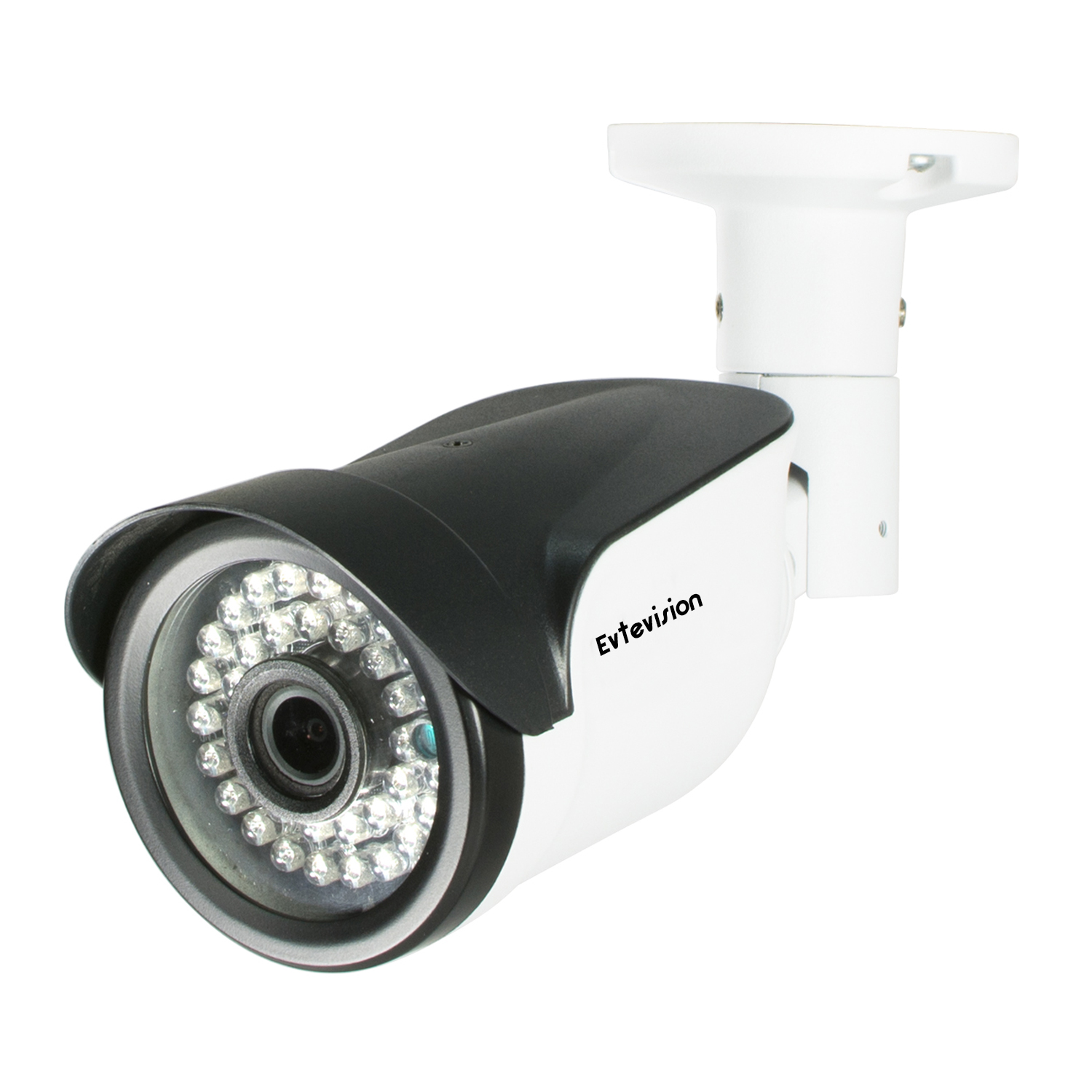

1080P Fixed Bullet IP Cameras

System

Embedded   RTOS,dual-core 32bit DS

DSP

GK7205   V200

/

Image   Sensor

1/2.8" inch IMX307

/

Effective   Pixels

2MP(1920*1080)

/

S/N   Ratio

More than   50dB

Noise   reduction

Support   2D/3D

Wide   dynamic

Support   Digital

IR   distance

36pcs IR Led, 30M Night Vision

Day/Night

Auto(ICR)/Color/B/W

Lens

2.8mm Fixed Lens

/

Dimension

180*68*68(mm)

/

Video

Video compression

H.265+/H.265/H.264 Compression   Technology, AVI format

Resolution

2MP

/

Video   output

Main   Stream: 1920*1080

Sub   Stream:800*488@25fps

/

Stream   0.1M~8Mpbs adjustable, Frame 1 ~ 25/30fps adjustable

Bit Rate

H.265     0.1M-8Mpbs

Network

Ethernet

1 * RJ45, 10/100M

Protocol

Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP

ONVIF

Support ONVIF 2.4

USB 3G/Wifi/SD   card

No

POE

Optional

Mobile   phone

Support (iPhone/ Android)

General

Basic   Function

Motion   detection, Web remote configuration, CMS software

Basic   intelligent analysis

Human   detection and face snapshot based on XM NVR

Power   Supply

DC12V

Power   Consumption

<10W

Working   Environment

-10°C~+60°C,   10%~90%

Protection

IP66

Application   software

CMS   platform network management software
