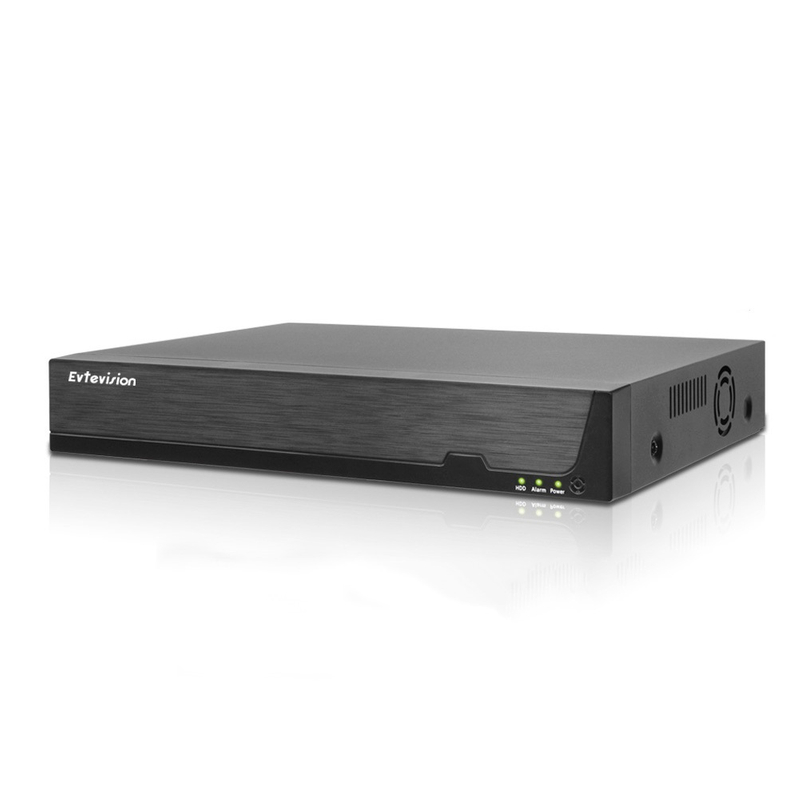

16-Channel 4K NVR

●Supports Up to 16 Channels 4K / 5MP / 4MP/ 3MP / 1080P / 960P / 720P IP Camera Input ●1 HDMI and 1 VGA interfaces ●Compatibility with a Variety of 3rd-Party Onvif IP Cameras ●Easy Remote Access by Smartphone/Windows PC/Mac OS ●Motion Detection Alarm Alert
Availability:
  • ES-N1716L-4K

  • Evtevision

  • ES-N1716L-4K

This NVR provides up to 16 channels of 4K/5MP/4MP/3MP/1080P/960P /720P HD IP Video Inputs, up to 2 Channels of simultaneous playback, and up to 2K HDMI Output. It is suitable for a variety of applications in the fields of residential, financial, commercial, enterprise, transportation and government.


·         Supports Up to 16 Channels 4K/ 5MP / 4MP/ 3MP / 1080P / 960P / 720P IP Camera Input

·         Supports H.265+/H.265X Video Compression with Up to 50% Savings in bandwidth over H.264

·         Intuitive and User-Friendly Graphic User Interface (GUI)

·         HDMI Output support 4K

·         Compatibility with a Variety of 3rd-Party Onvif IP Cameras

·         Multi-Mode Recording: Manual / Scheduled / Motion / Alarm

·         Pentaplex Operation : Live View, Record, Playback, Backup and Remote Access

·         Supports Intelligent Analysis: Face DetectionHumanoid Detectionfunctions like Perimeter alertitem retentionVideo diagnosisintelligent fast play and intelligent retrieval(depend on ip cameras)

·         Quick and Easy Backup via USB and Network

·         Dual Stream Technology allows for High Quality Local Recordings and Standard Quality Video for Mobile and Remote Access

·         Remote Access by Xmeye Pro App via Mobilephone,CMS/VMS via Windows/Mac OS and IE Browser

·         Allows Simultaneous Online Users to Access Device

·         Support QR Code Scanning by Mobile Apps

·         Support multiple network services (support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.)


Model

ES-N1716L-4K

System

Main processor


Operating System

Embedded Linux

System resources

Simultaneous multi-channel real-time recording,   playback, network operation, USB backup

Interface

Operator interface

16-bit true color graphic menu operation interface,   support mouse operation

Preview

1/4/9/16

Video

Video input (IP)

16*4K

Access bandwidth

64Mbps

Forwarding bandwidth

64Mbps

Video compression

H.265++/H.265+/H.265/H.264

Display quality

Max 4K

Playback quality

4K/5M/4MP/4MP/1080P

Decode

1*4K

VR

Unsupport

human shape / Face

Support(depend on camera)

Audio

Audio compression

G.711A

Intercom

Unsupport

Record &

Playback

Recording mode

Manual>Alarm>Dynamic Detection>Timing

Local payback

1*5M/1*5M/2*1080P

Search mode

Search by Time/Calendar/Event/Channel

Record storage

HDDNetwork

Backup mode

Network backup, USB hard disk, USB burner, SATA burner

External

Interface

Video output

1ch VGA1ch HDMI HD output

Audio I/O

0/0

Alarm I/O

0/0

Network interface

1*RJ45 10M/100M Adaptive Ethernet port

USB interface

2*USB2.0 ports

HDD

1*SATA(Up to 8TB for each disk)

ESATA

No

Serial interface

No

Others

ONVIF

Support

Power supply

12V/2A

Power Consumption

<10W(Without HDD)

Work environment

Temperature:0-55 , Humidity:10%90%RH ,   Atm:86kpa106kp

Dimension

255mm(L)*235mm(W)*43mm(H)

Weight

1450g
