ES-IPR507EYQ-AF
Evtevision

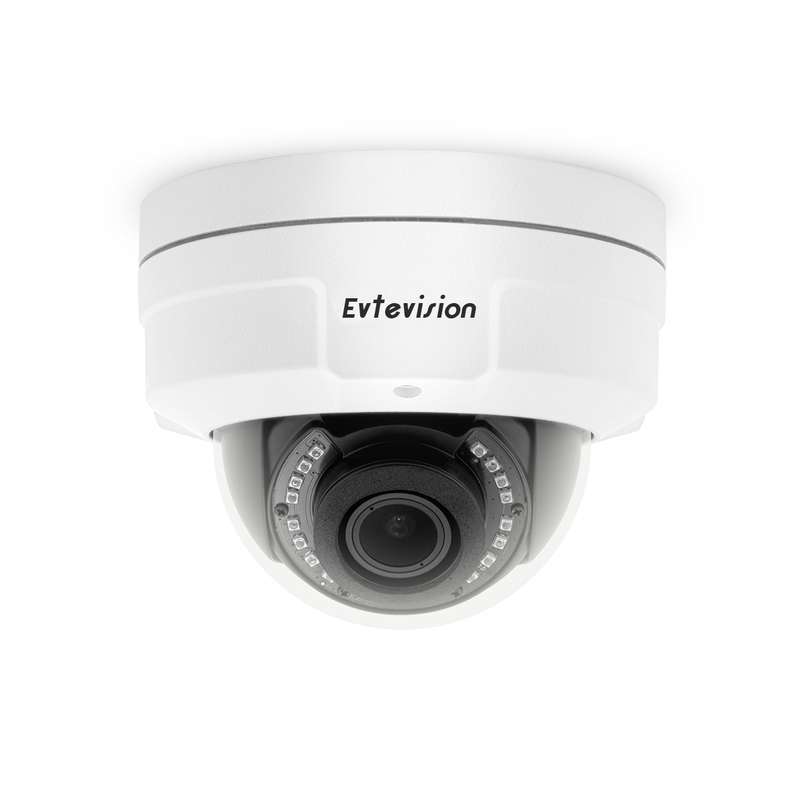

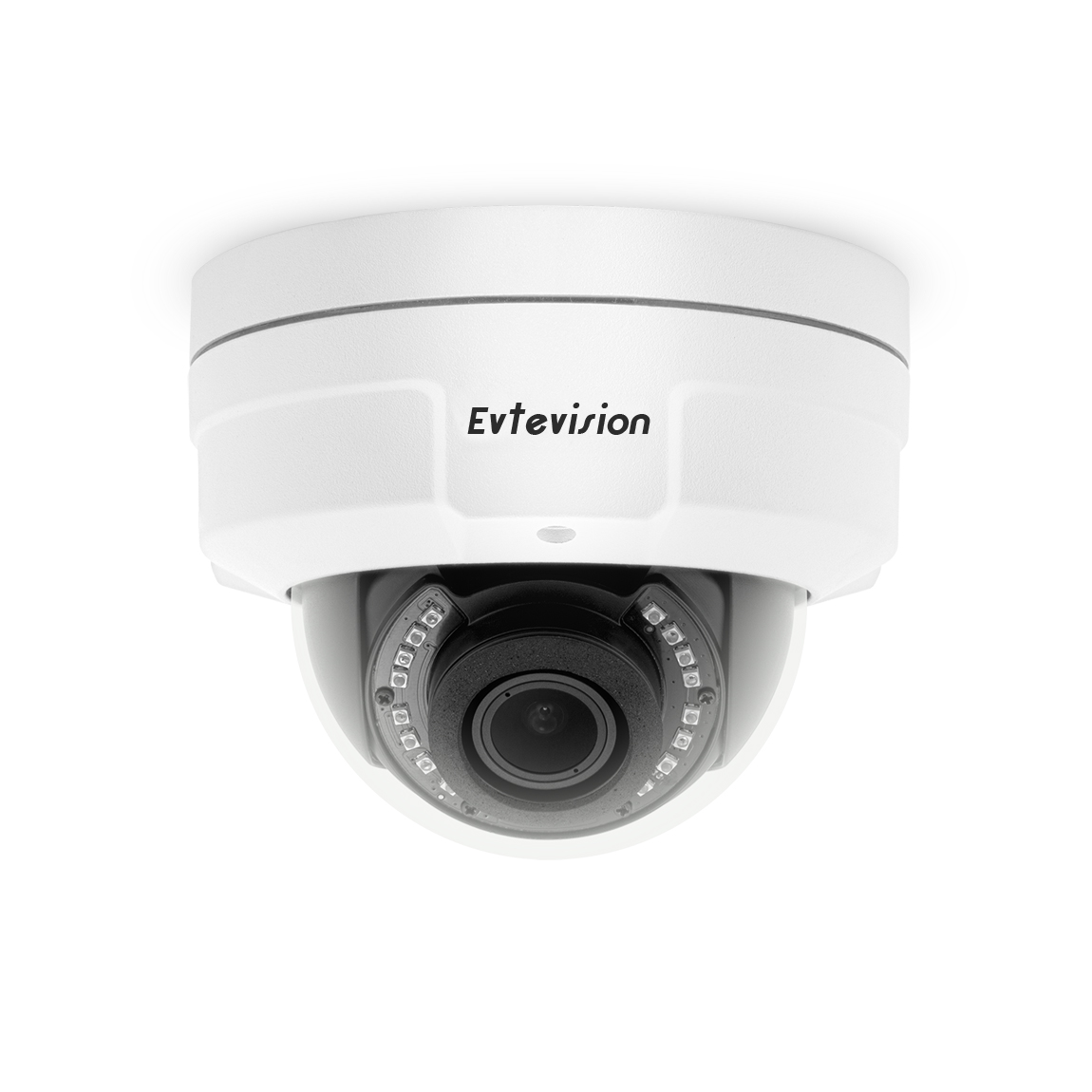

Evtevision 5MP H.265 PoE Security Camera with 5X Optical Zoom Motorized 2.7-13.5mm Lens
This PoE surveillance camera is 5MP (2592x1944) high-resolution with built-in 19pcs infrared illuminators to see up to 60ft long range decent IR night vision at dark or in low-light condition around the detached garage, front door, driveway and etc.
Embedded with PoE module for single network cable to transmit both power and video together from PoE injector. Without power adapter and equipped with IP66 weatherproof housing, the IP camera can be installed inside and outside, such as gate, front door, garden, backyard, garage, corridor, kitchen, living room, etc. This IP camera fully compatible with Evtevision/XM NVR, and can be added to live view with third party Onvif NVR.
This wired outdoor security camera with wide viewing angle (31°~90˚) to capture more, has 5x optical zoom with a 2.7-13.5mm motorized lens to see more sharp details without image impairment.
Impressive H.265 High Efficiency Video Coding, save bandwidth for 70% than H.264, increase storage and transmission efficiency.
Rich feature and functions in free App(Xmeye) for iPhone, Android smartphone. The PoE camera indoor/outdoor has motion detection triggering an email notification or pushing message via smartphone. For any technical questions, please contact us freely!
Evtevision 5MP H.265 PoE Security Camera with 5X Optical Zoom Motorized 2.7-13.5mm Lens
This PoE surveillance camera is 5MP (2592x1944) high-resolution with built-in 19pcs infrared illuminators to see up to 60ft long range decent IR night vision at dark or in low-light condition around the detached garage, front door, driveway and etc.
Embedded with PoE module for single network cable to transmit both power and video together from PoE injector. Without power adapter and equipped with IP66 weatherproof housing, the IP camera can be installed inside and outside, such as gate, front door, garden, backyard, garage, corridor, kitchen, living room, etc. This IP camera fully compatible with Evtevision/XM NVR, and can be added to live view with third party Onvif NVR.
This wired outdoor security camera with wide viewing angle (31°~90˚) to capture more, has 5x optical zoom with a 2.7-13.5mm motorized lens to see more sharp details without image impairment.
Impressive H.265 High Efficiency Video Coding, save bandwidth for 70% than H.264, increase storage and transmission efficiency.
Rich feature and functions in free App(Xmeye) for iPhone, Android smartphone. The PoE camera indoor/outdoor has motion detection triggering an email notification or pushing message via smartphone. For any technical questions, please contact us freely!
Camera Model | ES-IPV506EY-AF |
System | Embedded RTOS design |
DSP | Hi3516D V100 |
Image Sensor | 1/2.5” 5.0Megapixel |
Effective Pixels | 2592(H)x1944(V) |
S/N Ratio | More than 58dB |
IR distance | 20M |
Day/Night | Auto(ICR)/Color/B/W |
Lens | 2.7-13.5mm 5X Optical Zoom Motorized lens |
Video | |
Video compression | H.265/H.264 Compression Technology, AVI format |
Resolution | 2592*1944,1920*1080,1280×720 |
Video output | Main Stream:2592*1944@15fps,1920*1080@25fps Sub Stream:704*576@25fps |
Stream 0.1M~10Mpbs adjustable, Frame 1 ~ 25fps adjustable | |
Bit Rate | H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 20480Kbps |
Network | |
Ethernet | 1 * RJ45, 10/100M |
Protocol | Support RTSP/FTP/DHCP/DDNS/NTP/UPnP |
ONVIF | Support ONVIF 2.0/2.4 |
USB 3G&Wifi | No |
POE | 48V |
Mobile phone | Support (iPhone /Android) |
General | |
Basic Function | Motion detection, Web remote configuration, CMS software |
Power Supply | DC12V |
Power Consumption | <10W |
Working Environment | -10°C~+60°C, 10%~90% |
Application software | CMS/VMS platform network management software |
