ES-PTZ504P
Evtevision

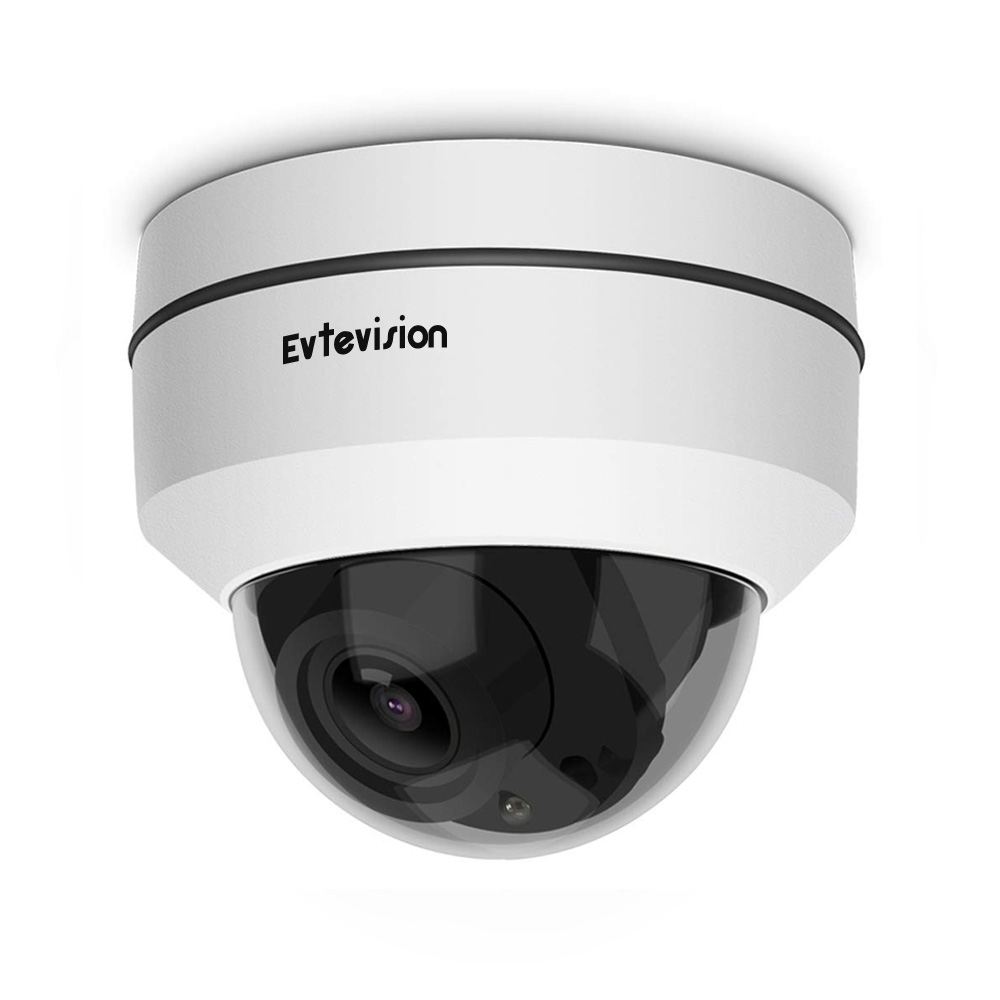

This Mini PTZ camera adopts high performance cmos sensor, super high resolution up to 5.0 Megapixel(2592x1944), provides you more clear and real image. Built in 5x (2.7-13.5mm) optical zoom lens,20-30M IR distance.
Two connection way: 1. Connect with Onvif POE NVR directly; 2. Connect with common NVR and POE switch or injector. PoE with only one Ethernet cable , no power adapter needed.
The IP66 waterproof and brown color anti-explosion dome cover support lightning protection and ati surge for bad weather.
Horizontal rotation 355° continuous rotation with pan speed 0 °/s-25°/s,Vertical 0-70°with tilt speed 0 °/s-20°/s,Support automatic flip,that make the dome camera full coverage. Support Pelco-P, Pelco-D procotols.
This Mini PTZ camera adopts high performance cmos sensor, super high resolution up to 5.0 Megapixel(2592x1944), provides you more clear and real image. Built in 5x (2.7-13.5mm) optical zoom lens,20-30M IR distance.
Two connection way: 1. Connect with Onvif POE NVR directly; 2. Connect with common NVR and POE switch or injector. PoE with only one Ethernet cable , no power adapter needed.
The IP66 waterproof and brown color anti-explosion dome cover support lightning protection and ati surge for bad weather.
Horizontal rotation 355° continuous rotation with pan speed 0 °/s-25°/s,Vertical 0-70°with tilt speed 0 °/s-20°/s,Support automatic flip,that make the dome camera full coverage. Support Pelco-P, Pelco-D procotols.
Camera Model | ES-PTZ504P |
System | Embedded RTOS design |
DSP | Mstar |
Image Sensor | 1/2.7” Sony IMX335 5.0Megapixel |
Effective Pixels | 2592(H)*1944(V) |
S/N Ratio | More than 58dB |
IR distance | 20-25M |
Day/Night | Auto(ICR)/Color/B/W |
Lens | 2.7-13.5mm auto focus 5X motorized lens |
Video | |
Video compression | H.265/H.264 Compression Technology, AVI format |
Resolution | 2592*1944,2560*1440,1920*1080,1280×720 |
Video output | Main Stream:2592*1944@15fps,2560*1440@20fps Sub Stream:704*576@25fps |
Stream 0.1M~10Mpbs adjustable, Frame 1 ~ 25fps adjustable | |
Bit Rate | H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 20480Kbps |
PTZ | Pan / Tilt Range: Pan: 355°Continuous Rotation; Tilt: 0° ~ 70°, Rotationt Speed: 0.5-70° /s;Preset number:128; 1 patrols,1 left and right scan,1 auto level scan; Protocols: Pelco-P, Pelco-D, self-adaptiv; Horizontal rotation 355 ° continuous rotation with pan speed 0 °/s-25°/s,Vertical 0-70°with tilt speed 0 °/s-20°/s. |
Network | |
Ethernet | 1 * RJ45, 10/100M |
Protocol | Support RTSP/FTP/DHCP/DDNS/NTP/UPnP |
ONVIF | Support ONVIF 2.0/2.4 |
USB 3G&Wifi | No |
POE | 48V |
Mobile phone | Support (iPhone /Android) |
General | |
Basic Function | Motion detection, Web remote configuration, CMS software |
Power Supply | DC12V |
Power Consumption | <10W |
Working Environment | -10°C~+60°C, 10%~90% |
Application software | CMS/VMS platform network management software |
