5MP PoE Cameras Systems

● 8 Security Cameras Systems;
● SHD 5MP High Resolution;
● H.265 High Efficiency Video Coding;
● Power Over Ethernet,Easy Plug and Play
● Remote Access from Smartphone;
Availability:
  • ES-1616NKIT-DB4-5MP

  • Evtevision

  • ES-1616NKIT-DB4-5MP

  • 【5MP Super HD PoE Camera System】- 5MP HD POE Cameras and High FPS offers you Seamless Stream Night Video without Freezes, 3.6mm fixed lens and 24/36pcs IR Leds offering night vision distance up to 20/30meters,Good choice for indoor/outdoor home and business surveillance

  • 【Truely Power over Ethernet CCTV Sysyrem】-The POE system only need a single network cable directly connects each IP camera to the NVR, supplying both power and video signal, make your wiring less hassle. You can set your cameras anywhere without concerning whether there is a nearby power outlet

  • 【Advanced H.265 Video Encoding Supported】 - H.265 is faster, consumes 50% LESS data and has a reduced data footprint allowing you to store more video to your NVR while also preserving and improving upon superior video quality

  • 【Remote Access & Motion-Triggered Alerts】- With our free XMEye App, you can enjoy live footage, review recordings, and manage your camera settings from anywhere in the world. And whenever any motion is detected in your customized motion areas, email alerts and APP alarm pushes will be sent to you immediately

  • 【Indoor&Outdoor Cams for full day monitoring】- This professional security camera can capture night vision up to 100ft in darkness.This durable IP66 weatherproof metal housing camera will always remain in an excellent working condition even in extreme weather conditions, like in the storm and snowy weather


POE NVR Specifications

Monitor

VGA(1080P)/HDMI(4K)

Preview

16*5MP

Record

16*5MP

Playback

1*5MP or 2*2MP

Motion   Detection

Each   screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity   can be set (Limited local channel)

Audio

G.711A Compression

Record   mode

manual>alarm>motion   detection>timing

Playback

1 or 2 channel

Search   mode

Search by time, calendar,   event, channel

Video   storage

HDD,   network

Backup   mode

Network,   USB hard disk, USB burner, SATA burner

Video   input

16ch input, built in 8 POE

Video   output

1ch VGA,1ch HDMI

Audio   input

no

Audio   output

no

Network

1*RJ45   10M/100M

USB

2*   USB 2.0 ports

HDD

1*SATA ports (Max   8TB/per), HDD not including

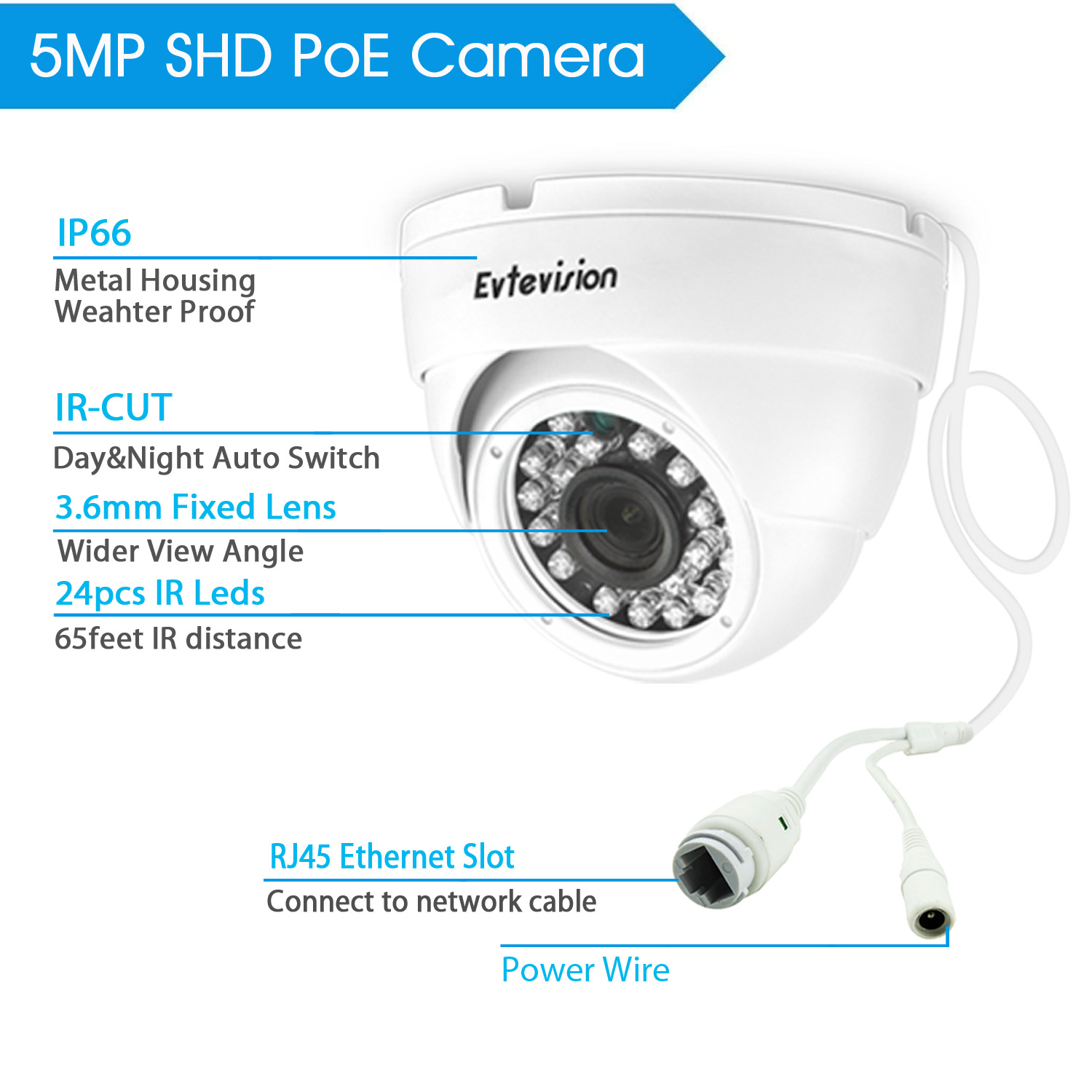

Camera   Specifications

Resolution

5MP  (2592*1944)

Video   Format

H.265/H.264

DSP

XM550AI   or Hi3516EV300

Sensor

1/2.5   inch SOI S05 CMOS Sensor

Day&Night

Switch   by IR CUT

Lens

3.6mm   fixed lens

IR   Distance

Dome camera:24pcs  LED,20M IR distance

Bullet camera:36pcs  LED,30M IR distance

Protection

IP66   Waterproof level

Power

POE   48-52V or DC12V

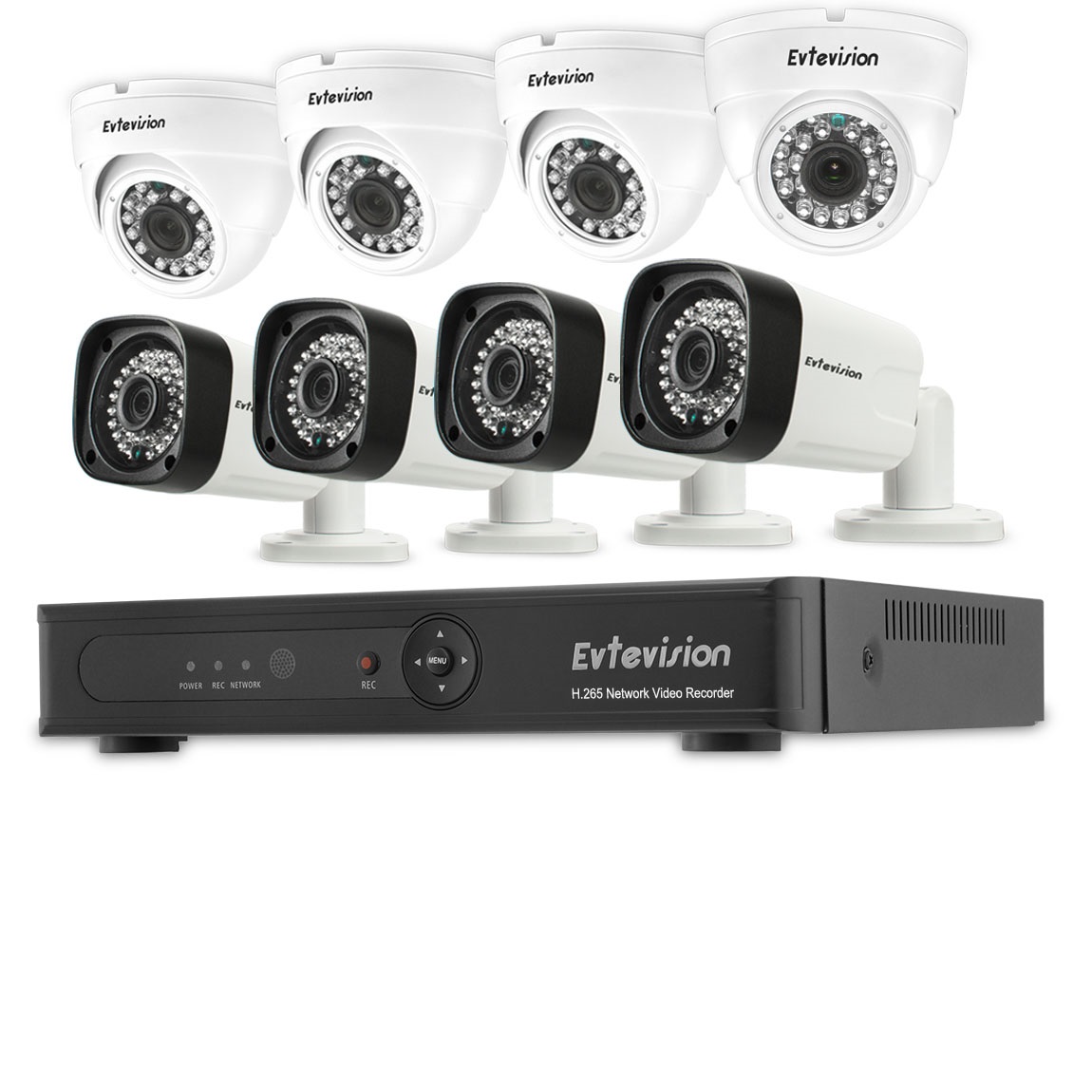

Package Contents:
* 1x 16CH 5MP NVR
* 4x 5MP Wired Bullet POE IP Cameras
* 4x 5MP Wired Dome POE IP Cameras
* 1x 52V Power Adapter for NVR and Camera
* 1x USB Mouse
* 8x 60Feet Ethernet Cables
* 8x Mounting Screw bag
* 1x User Manual
