ES-1709NKIT-D8-2MP
Evtevision
ES-1709NKIT-D8-2MP
【HD 1080P PoE Camera System】- 2MP HD POE Cameras and High FPS offers you Seamless Stream Night Video without Freezes, 2.8mm fixed lens and 24pcs IR Leds offering night vision distance up to 20meters,Good choice for indoor/outdoor home and business surveillance
【Truely Power over Ethernet CCTV Sysyrem】- The POE system only need a single network cable directly connects each IP camera to the NVR, supplying both power and video signal, make your wiring less hassle. You can set your cameras anywhere without concerning whether there is a nearby power outlet
【Advanced H.265 Video Encoding Supported】- H.265 is faster, consumes 50% LESS data and has a reduced data footprint allowing you to store more video to your NVR while also preserving and improving upon superior video quality
【Remote Access & Motion-Triggered Alerts】- With our free XMEye App, you can enjoy live footage, review recordings, and manage your camera settings from anywhere in the world. And whenever any motion is detected in your customized motion areas, email alerts and APP alarm pushes will be sent to you immediately
【Indoor&Outdoor Cams for Full Day Monitoring】- This professional security camera can capture night vision up to 100ft in darkness.This durable IP66 weatherproof metal housing camera will always remain in an excellent working condition even in extreme weather conditions, like in the storm and snowy weather
【HD 1080P PoE Camera System】- 2MP HD POE Cameras and High FPS offers you Seamless Stream Night Video without Freezes, 2.8mm fixed lens and 24pcs IR Leds offering night vision distance up to 20meters,Good choice for indoor/outdoor home and business surveillance
【Truely Power over Ethernet CCTV Sysyrem】- The POE system only need a single network cable directly connects each IP camera to the NVR, supplying both power and video signal, make your wiring less hassle. You can set your cameras anywhere without concerning whether there is a nearby power outlet
【Advanced H.265 Video Encoding Supported】- H.265 is faster, consumes 50% LESS data and has a reduced data footprint allowing you to store more video to your NVR while also preserving and improving upon superior video quality
【Remote Access & Motion-Triggered Alerts】- With our free XMEye App, you can enjoy live footage, review recordings, and manage your camera settings from anywhere in the world. And whenever any motion is detected in your customized motion areas, email alerts and APP alarm pushes will be sent to you immediately
【Indoor&Outdoor Cams for Full Day Monitoring】- This professional security camera can capture night vision up to 100ft in darkness.This durable IP66 weatherproof metal housing camera will always remain in an excellent working condition even in extreme weather conditions, like in the storm and snowy weather
POE NVR Specifications | |
Monitor | VGA(1080P)/HDMI(2K) |
Preview | 9*5MP/2MP |
Record | 9*5MP/2MP@25fps |
Playback | 1*5MP@25fps or 2*2MP@25fps |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
Audio | G.711A Compression |
Record mode | manual>alarm>motion detection>timing |
Playback | 1 or 2 channel(analog input mode) |
Search mode | Search by time, calendar, event, channel |
Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner |
Video input | 9*5MP/2MP camera |
Video output | 1ch VGA,1ch HDMI |
Audio input | no |
Audio output | 1ch |
Network | 9*RJ45 10M/100M |
USB | 2* USB 2.0 ports |
HDD | 1*SATA ports (Max 8TB/per), HDD not including |
Camera Specifications | |
Resolution | 1920*1080@25fps |
Video Format | H.265/H.264 |
DSP | XM530AI or Hi3516EV200 |
Sensor | 1/3 inch SOI F37 CMOS Sensor |
Day&Night | Switch by IR CUT |
Lens | 2.8mm fixed lens |
IR Distance | Dome:24pcs LED,20M IR distance |
Protection | IP66 Waterproof level |
Power | POE 48-52V or DC12V |
POE NVR Specifications | |
Monitor | VGA(1080P)/HDMI(2K) |
Preview | 9*5MP/2MP |
Record | 9*5MP/2MP@25fps |
Playback | 1*5MP@25fps or 2*2MP@25fps |
Motion Detection | Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel) |
Audio | G.711A Compression |
Record mode | manual>alarm>motion detection>timing |
Playback | 1 or 2 channel(analog input mode) |
Search mode | Search by time, calendar, event, channel |
Video storage | HDD, network |
Backup mode | Network, USB hard disk, USB burner, SATA burner |
Video input | 9*5MP/2MP camera |
Video output | 1ch VGA,1ch HDMI |
Audio input | no |
Audio output | 1ch |
Network | 9*RJ45 10M/100M |
USB | 2* USB 2.0 ports |
HDD | 1*SATA ports (Max 8TB/per), HDD not including |
Camera Specifications | |
Resolution | 1920*1080@25fps |
Video Format | H.265/H.264 |
DSP | XM530AI or Hi3516EV200 |
Sensor | 1/3 inch SOI F37 CMOS Sensor |
Day&Night | Switch by IR CUT |
Lens | 2.8mm fixed lens |
IR Distance | Dome:24pcs LED,20M IR distance |
Protection | IP66 Waterproof level |
Power | POE 48-52V or DC12V |

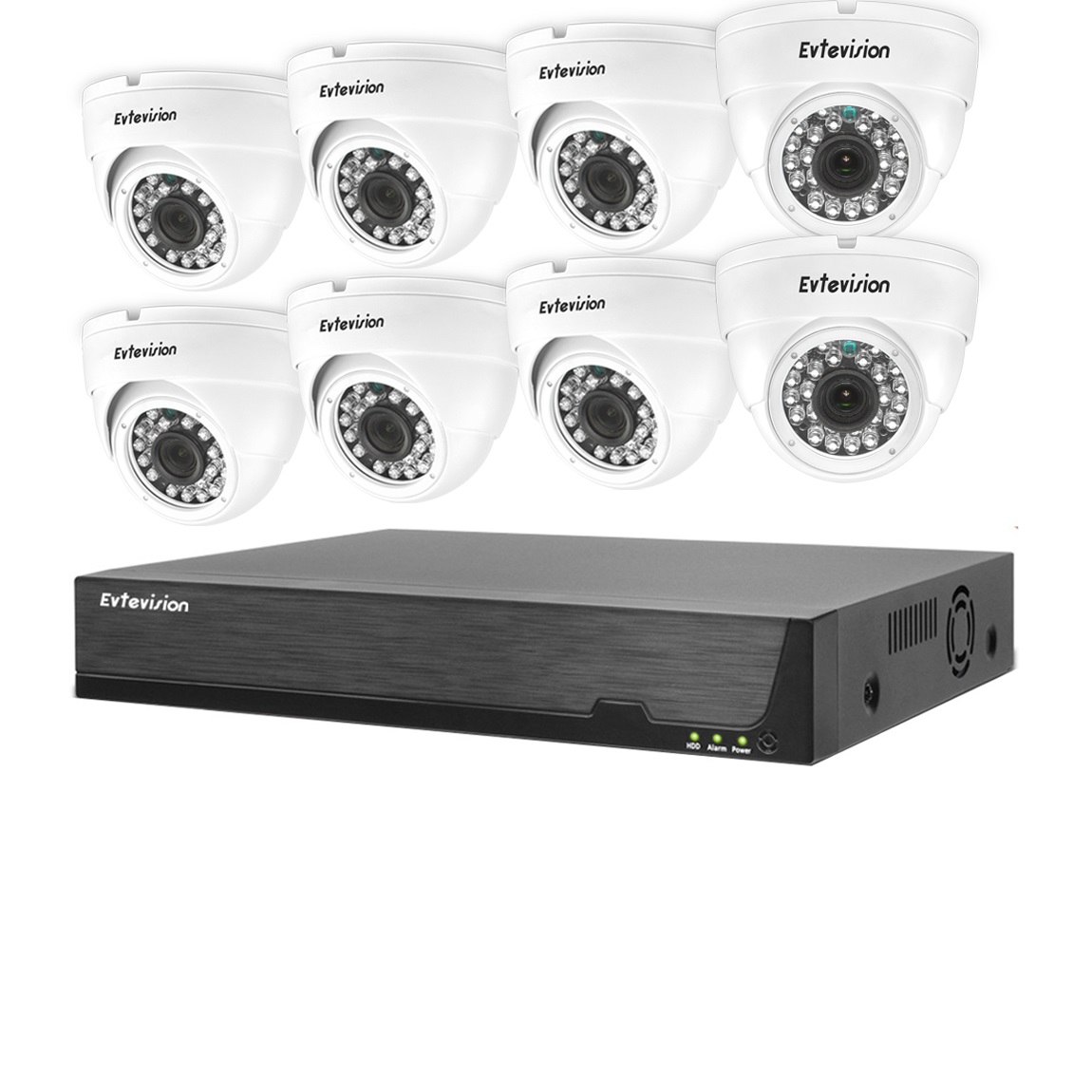

Package Contents:
* 1x 9CH 5MP NVR
* 8x 1080P Wired Dome POE IP Cameras
* 1x 52V Power Adapter for NVR and Camera
* 1x USB Mouse
* 8x 60Feet Ethernet Cables
* 8x Mounting Screw bag
* 1x User Manual
Package Contents:
* 1x 9CH 5MP NVR
* 8x 1080P Wired Dome POE IP Cameras
* 1x 52V Power Adapter for NVR and Camera
* 1x USB Mouse
* 8x 60Feet Ethernet Cables
* 8x Mounting Screw bag
* 1x User Manual
