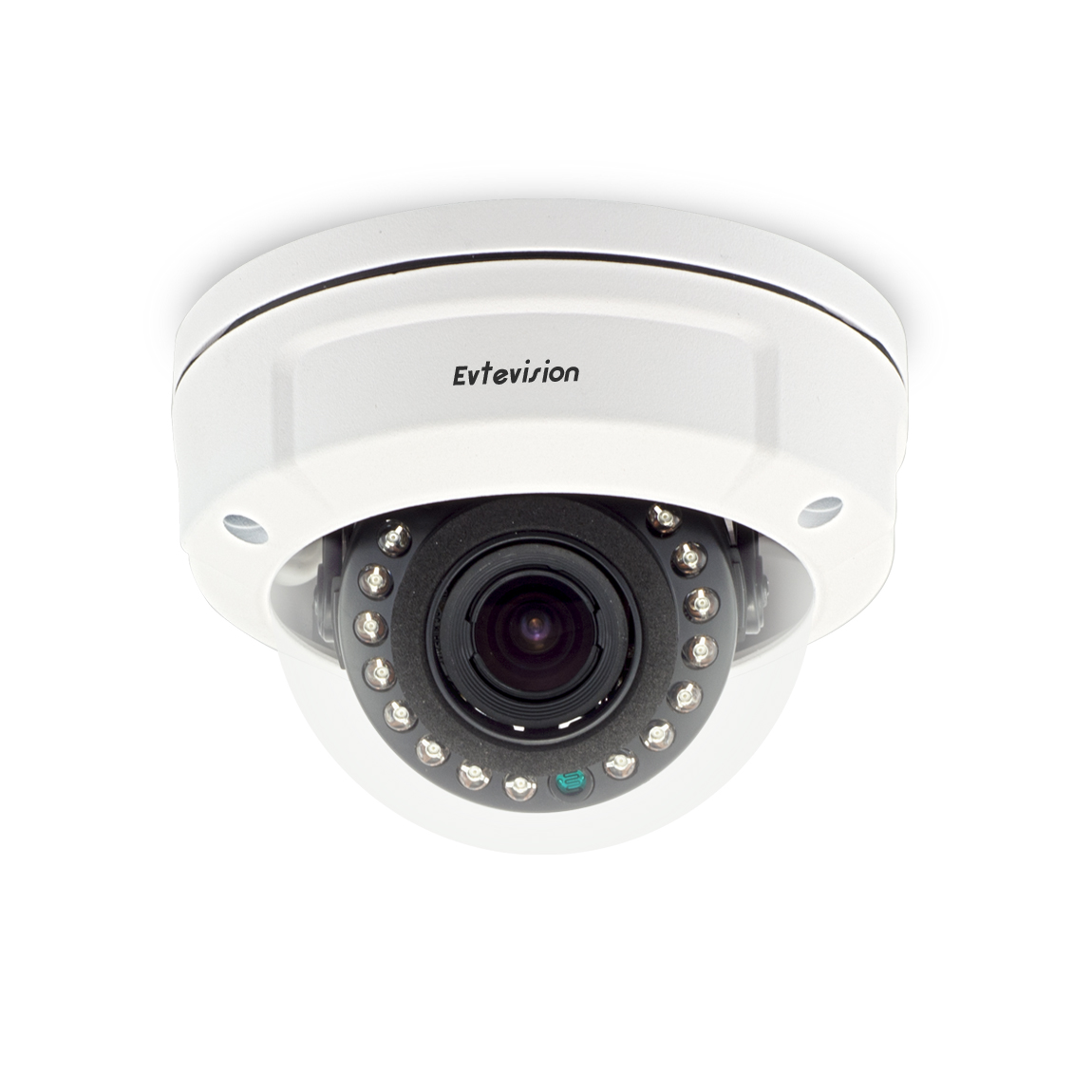

ES-IPV203ES/VF
Evtevision
1080P HD Resolution
Advanced H.265/ H.264 video compression
Dual encoding streams supported
Support Cloud service, by Device ID user can make remote access very easy
Support Motion detection and JPEG image snapshot
Free CMS, Built in Web Server
Support Onvif
1080P HD Resolution
Advanced H.265/ H.264 video compression
Dual encoding streams supported
Support Cloud service, by Device ID user can make remote access very easy
Support Motion detection and JPEG image snapshot
Free CMS, Built in Web Server
Support Onvif
Camera Model | ES-IPV203ES/VF |
System | Embedded RTOS design |
DSP | HI3516E V200 |
Image Sensor | 1/2.7” SC4239P 2.0Megapixel |
Effective Pixels | 1920(H)*1080(V) |
S/N Ratio | More than 58dB |
IR Distance | 10M, 12pcs IR Led |
Day/Night | Auto(ICR)/Color/B/W |
Lens | 2.8-12mm Vari-focal lens |
Video | |
Video compression | H.265/H.264 Compression Technology, AVI format |
Resolution | 1920*1080,1280×720 |
Video output | Main Stream:1920*1080@20fps,1280*720@25fps Sub Stream:704*576@25fps |
Stream 0.1M~10Mpbs adjustable, Frame 1 ~ 25fps adjustable | |
Bit Rate | H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 20480Kbps |
Network | |
Ethernet | 1* RJ45, 10/100M |
Protocol | Support RTSP/FTP/DHCP/DDNS/NTP/UPnP |
ONVIF | Support ONVIF 2.0/2.4 |
USB 3G&Wifi | No |
POE | 48V |
Mobile phone | Support (iPhone /Android) |
General | |
Basic Function | Motion detection, Web remote configuration, CMS software |
Power Supply | DC12V |
Power Consumption | <10W |
Working Environment | -10°C~+60°C, 10%~90% |
Application software | CMS/VMS platform network management software |
Camera Model | ES-IPV203ES/VF |
System | Embedded RTOS design |
DSP | HI3516E V200 |
Image Sensor | 1/2.7” SC4239P 2.0Megapixel |
Effective Pixels | 1920(H)*1080(V) |
S/N Ratio | More than 58dB |
IR Distance | 10M, 12pcs IR Led |
Day/Night | Auto(ICR)/Color/B/W |
Lens | 2.8-12mm Vari-focal lens |
Video | |
Video compression | H.265/H.264 Compression Technology, AVI format |
Resolution | 1920*1080,1280×720 |
Video output | Main Stream:1920*1080@20fps,1280*720@25fps Sub Stream:704*576@25fps |
Stream 0.1M~10Mpbs adjustable, Frame 1 ~ 25fps adjustable | |
Bit Rate | H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 20480Kbps |
Network | |
Ethernet | 1* RJ45, 10/100M |
Protocol | Support RTSP/FTP/DHCP/DDNS/NTP/UPnP |
ONVIF | Support ONVIF 2.0/2.4 |
USB 3G&Wifi | No |
POE | 48V |
Mobile phone | Support (iPhone /Android) |
General | |
Basic Function | Motion detection, Web remote configuration, CMS software |
Power Supply | DC12V |
Power Consumption | <10W |
Working Environment | -10°C~+60°C, 10%~90% |
Application software | CMS/VMS platform network management software |
